Composite SAW Wire

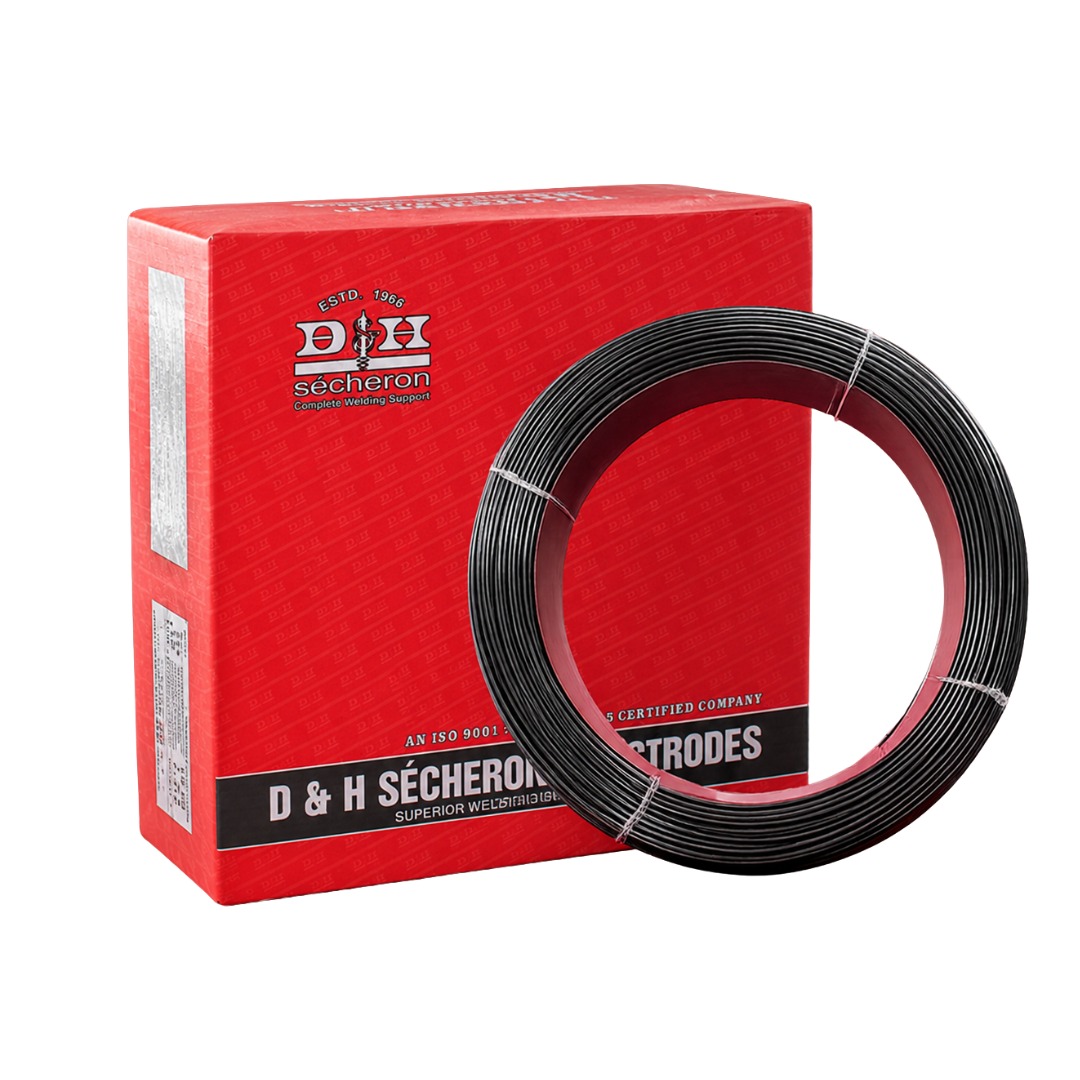

LoTherme HF-18

AWS: SFA

EN ISO CODE:

Composite submerged arc welding wires recommended with Maxflux SAF-704 flux for re-building of rollers.
LOTHERME HF-18 is a composite SAW wire of 0.5-1.2% Cr, 1-2% Ni, low carbon with controlled addition of Silicon & Molybdenum for buffer layer deposits. The weld metal has excellent bonding property, resistance to solidification cracking and is easily machinable.
LOTHERME SAF-704 is an agglomerated basic flux, shall be re-dried at 350°C before use.

Approvals

ALL-WELD METAL COMPOSITION (with LOTHERME SAF-704 FLUX):

Wire	C	Mn	Si	Cr	Ni	Mo	N
Lotherme HF-18	0.08 max	0.50-1.20	0.60 max	0.5-1.2	1.0-2.0	0.20-0.50	0.06-0.15

WELD METAL HARDNESS :

LOTHERME HF-18 & LOTHERME SAF-704 flux, on 3-layer

20-25 HRC

WELDING CURRENT & STICK OUT (Polarity: DC +):

Wire diameter, mm	Current, Amp	Voltage, V	Linear travel speed, mm/min
3.2	350 – 450	28 – 30	400 – 500

PACKAGING:

Standard wire size is 3.2mm. The wire is supplied in a layer wound 25 kg metallic ring packed in a shrink- wrapped corrugated box. Wire is also available in 200/250kg card-board drum packing packed on a pallet. Flux is supplied in 25kg poly-lined bag.
