For Nickel & Nickel Alloys

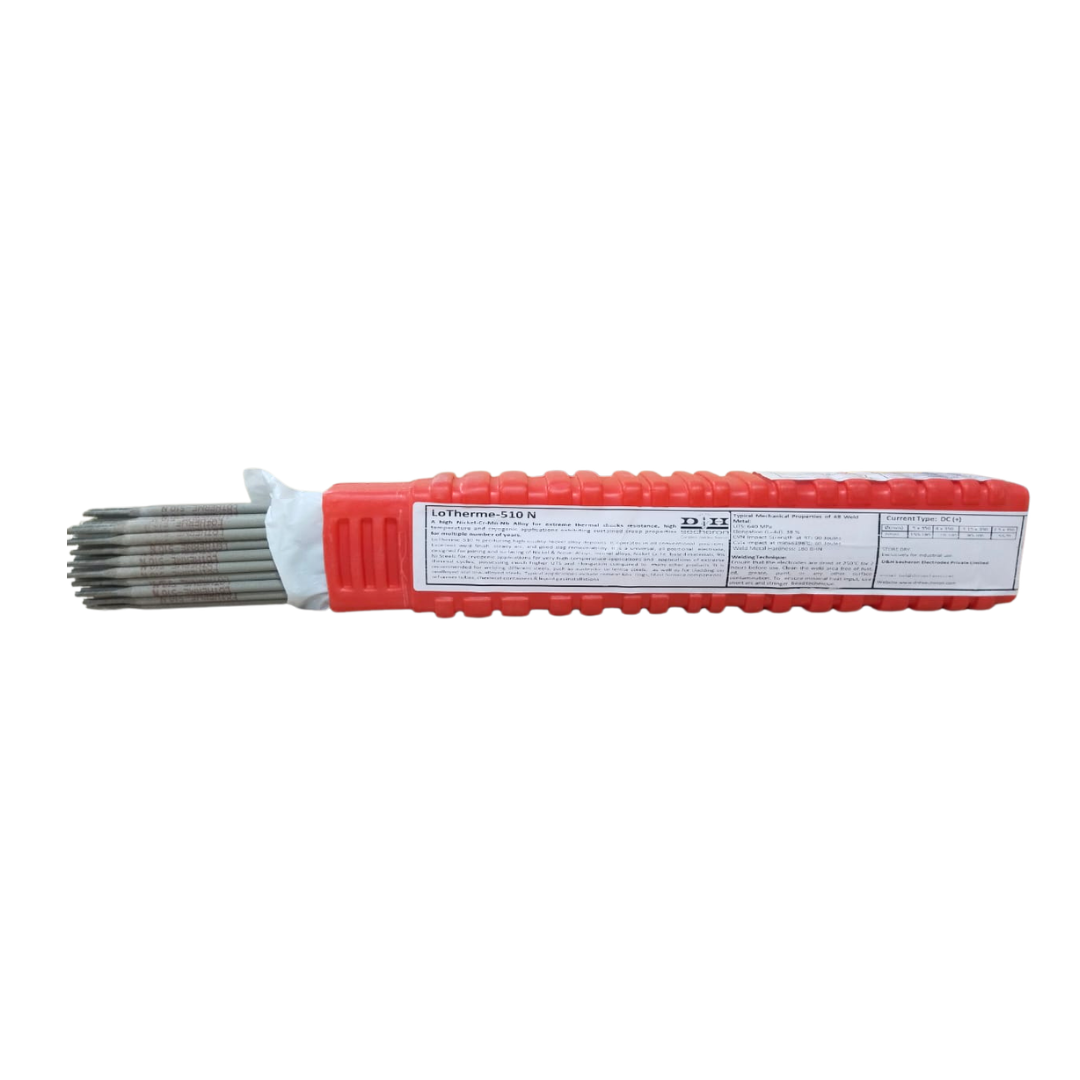

LoTherme-510N

AWS: SFA

EN ISO CODE:

A high Nickel-Cr-Mn-Nb Alloy for extreme thermal shocks resistance, high temperature and cryogenic applications exhibiting sustained creep properties for multiple number of years.

Approvals
Characteristics

LoTherme-510 N producing high quality Nickel alloy deposits. It operates in all conventional positions. Excellent weld finish, steady arc, and good slag remove-ability.

Applications

LoTherme-510 N is a universal, all positional electrode, designed for joining and surfacing of Nickel & Nickel Alloys, inconel alloys, Nickel-Cr-Fe based materials, 9% Ni Steels for cryogenic applications for very high-temperature applications and applications of extreme thermal cycles, possessing much higher UTS and Elongation compared to many other products. It is recommended for welding different steels, such as austenitic to ferrite steels, as well as for cladding on unalloyed and low-alloyed steels. Typical applications include cement kiln rings, blast furnace components, reformer tubes, chemical containers & liquid gas installations.

Typical Mechanical Properties Of All Weld Metal

Ultimate Tensile Strength : 640 MPa

Elongation (L=4d) : 38%

CVN Impact Strength at RT : 90 Joules

o CVN Impact Strength at minus 196°C  : 60 Joules

Weld Metal Hardness : 180 BHN

Welding Technique

Ensure that the electrodes are dried at 250°C for 2 hours before use. Clean the weld area free of rust, oil, grease, paint, or any other surface contamination. To ensure minimal heat input, use short arc and stringer bead technique.

Current Conditions : DC (+)


Size (mm)

Dia x Length

5x350
4x350
3.15x350
2.5x350
Current Range (Amps)
150-180
110-140
80-100
50-70
